Pump Technology Fundamentals: Positive Displacement vs. Kinetic Energy
Selecting the right pump technology is one of the most critical decisions in fluid handling system design. The two dominant pump families—positive displacement (rotary gear pumps) and centrifugal pumps—operate on fundamentally different principles, resulting in vastly different performance characteristics across viscosity, pressure, flow consistency, and reliability metrics.
Understanding the operating physics of each technology empowers engineers to select the pump that will deliver the required performance, reliability, and cost efficiency for their specific application. A pump poorly matched to the application leads to energy waste, premature failure, and system downtime.
How Rotary Gear Pumps Work: Positive Displacement Principle
Rotary gear pumps operate on the positive displacement (PD) principle: two interlocking rotating gears trap fluid in expanding and contracting chambers, mechanically forcing the fluid from inlet to discharge. As the drive gear and idler gear rotate, the space between gear teeth and pump casing expands on the inlet side, drawing fluid into the pump. The gears then rotate further, compressing this fluid and forcing it toward the discharge port.
The key defining characteristic of positive displacement is that flow rate depends only on pump displacement (cc/rev) and RPM:
GPM = (Displacement in cc/rev × RPM) / 462
This relationship is constant and independent of discharge pressure, fluid viscosity, or downstream resistance. A NAPCO PA300S pump with 26.5 cc/rev displacement running at 280 RPM delivers approximately 160 GPM whether the discharge pressure is 10 PSI or 150 PSI, and whether the fluid is water or 500-centipoise oil.
Implication: Gear pump flow is highly predictable and consistent, making them ideal for metering, proportional blending, and applications where accurate, repeatable flow rates are essential.
How Centrifugal Pumps Work: Kinetic Energy Principle
Centrifugal pumps operate on a fundamentally different principle: a spinning impeller imparts kinetic energy (velocity) to the fluid. As fluid enters near the impeller hub, the impeller blades accelerate it outward toward the pump casing volute. The impeller converts mechanical shaft energy into fluid velocity. The pump casing then converts this kinetic energy (velocity) back into pressure head through a gradually expanding volute or diffuser.
Critical characteristic: Centrifugal pump flow varies dramatically with discharge pressure. If discharge pressure increases, the impeller cannot accelerate the fluid as effectively, flow rate decreases substantially, and the pump operates further down its performance curve.
This pressure-flow relationship is non-linear and depends heavily on fluid properties. The same centrifugal pump delivering 1000 GPM at 10 PSI might deliver only 600 GPM at 50 PSI. Increase pressure to 150 PSI and flow might drop to 200 GPM or less. With viscous fluids, the performance curve shifts dramatically—the same pump cannot generate the same pressure at the same flow rate when pumping 500-cP oil versus water.
Implication: Centrifugal pump flow is unpredictable across varying discharge pressures and viscosities. They are not suitable for applications requiring consistent, repeatable flow or when handling viscous fluids.

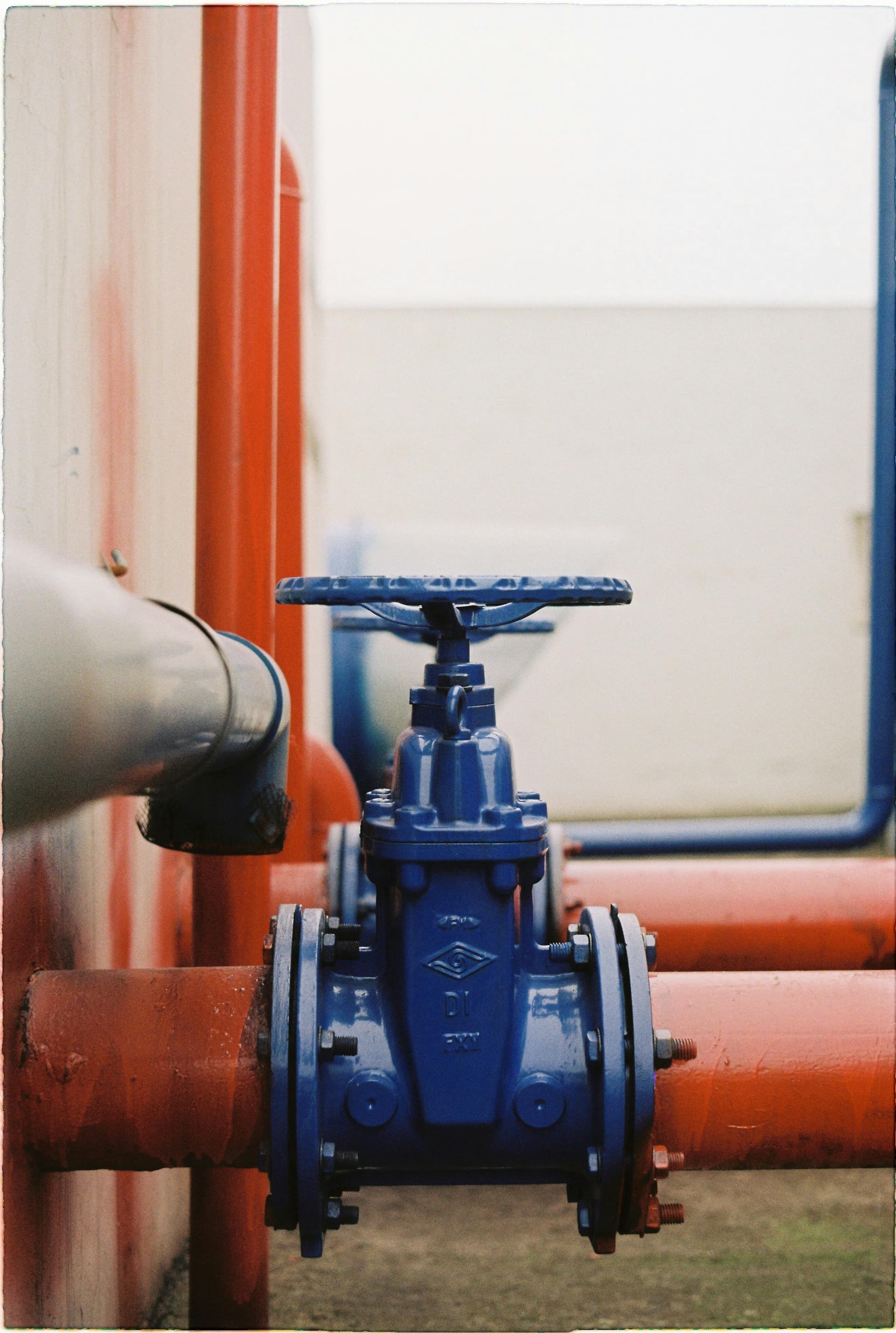

Industrial fluid transfer systems rely on selecting the correct pump technology
Head-to-Head Performance Comparison
The following table directly compares rotary gear pumps and centrifugal pumps across key performance metrics relevant to industrial fluid transfer applications.
| Performance Metric | Rotary Gear Pump | Centrifugal Pump |
|---|---|---|
| Flow Consistency | Highly consistent; independent of pressure and viscosity | Highly variable; drops sharply with pressure and viscosity increase |
| Viscosity Handling (<50 cP) | Excellent; minimal impact on performance or efficiency | Excellent; operates at peak efficiency |
| Viscosity Handling (100-500 cP) | Excellent; full flow maintained with slight pressure drop | Poor; flow drops 40-60%, efficiency collapses |
| Maximum Operating Pressure | 150-300 PSI typical (can exceed in specialized designs) | 150 PSI typical max; multi-stage designs for higher pressures |
| Flow Range Capability | Moderate flow ratings; 50-500 GPM common | Wide range; 100-5000+ GPM single-stage designs |
| Self-Priming Capability | Partial; can draw fluid <8 ft head with flooded suction | None; requires external prime or flooded inlet |
| Pulsation/Noise | Inherent pulsation (gear mesh); manageable with damping | Smooth, quiet operation; minimal pulsation |
| Maintenance / Repair | Field-serviceable; kits available for on-site rebuild | Requires factory rebuild or replacement; limited field repair |
| Dirt/Contamination Sensitivity | Moderate; requires inlet strainer; tight internal clearances | Low; can tolerate some contamination; larger clearances |
| Energy Efficiency (low viscosity) | Good; 70-85% typical mechanical efficiency | Excellent; 85-92% typical overall efficiency |
| Energy Efficiency (high viscosity) | Good; efficiency remains stable across viscosity range | Poor; efficiency drops 50% or more with thick fluids |
| Initial Cost | Moderate; specialized manufacturing | Low; mass-produced, commodity item |
| Suitable for Metering | Excellent; constant flow enables proportional blending | Poor; variable flow unsuitable for precise metering |
Application Selection Guide: When to Use Gear Pumps vs. Centrifugal
Use Rotary Gear Pumps For:
- Viscous fluids > 50 cP: Oils, adhesives, syrups, chocolate, polymers. Centrifugal pump efficiency collapses; gear pumps maintain full performance.
- High-pressure applications (> 100 PSI): Gear pumps deliver consistent flow at pressure; centrifugal pumps require multiple stages and higher energy input.
- Metering and proportional blending: Adhesive dispensing, dye injection, fuel transfer, chemical proportioning. Gear pump flow consistency enables accurate blending ratios.
- Transfer of shear-sensitive fluids: Emulsions, polymers, biological fluids. Gear pump laminar flow patterns minimize shear degradation.
- Compact system design: Gear pumps deliver moderate flow (50-500 GPM) in small packages. Smaller footprint than multi-stage centrifugal for comparable pressure.
- Mobile or portable pump units: Equipment-mounted pumps benefit from gear pump reliability and field serviceability. Easy rebuild with repair kits.
Use Centrifugal Pumps For:
- High-volume, low-viscosity applications: Water transfer, cooling loops, low-pressure oil circulation (< 50 cP). Centrifugal pumps excel at high flow, 500+ GPM.
- Low-pressure systems (< 50 PSI): Water supply, storage tank fill, low-pressure process circulation. Single-stage centrifugal is cost-effective and efficient.
- Applications where consistent flow is not critical: Cooling water circulation, general fluid transfer where modest pressure variation is acceptable.
- Quiet, smooth operation required: Centrifugal pumps operate quietly with minimal vibration. Suitable for facilities where noise is a concern.
- Highly contaminated or dirty fluids: Centrifugal pumps tolerate abrasive particles better than gear pumps due to larger internal clearances. Less sensitive to filtration requirements.
- Budget-constrained applications: Centrifugal pumps have lower initial cost and are commodity items with many supplier options.
The Viscosity Problem: Why Centrifugal Pumps Fail with Thick Fluids
The most common—and most costly—pump misapplication is attempting to use centrifugal pumps for high-viscosity fluid transfer. Engineers sometimes assume a centrifugal pump selected for water service can be switched to oil or adhesive "with slight speed adjustment." This assumption is dangerously wrong.
How Viscosity Destroys Centrifugal Pump Performance
Centrifugal pump performance depends on the impeller's ability to accelerate fluid. Low-viscosity water (10 cP) accelerates easily; the impeller imparts high velocity and kinetic energy is converted efficiently to pressure. With 500-cP oil, the high viscosity resists acceleration—the impeller cannot push the thick fluid outward as effectively. The velocity imparted is much lower, kinetic energy is reduced, and discharge pressure drops sharply.
Additionally, thick fluid creates excessive internal slippage: pressurized fluid leaks backward through clearances between the impeller and pump casing, between the impeller hub and shaft, and through labyrinth seals. With thin water, slippage is minimal. With 500-cP oil, slippage can consume 30-50% of the impeller's output, with the fluid simply recirculating internally and never reaching the discharge.
Result: A centrifugal pump rated at 500 GPM with 10-cP water might deliver only 200-250 GPM with 500-cP oil at the same RPM, and the discharge pressure falls well below the rated value. The system stalls, unable to push the thick fluid through the discharge piping.
Gear Pumps: Unaffected by Viscosity
Rotary gear pumps rely on mechanical displacement, not kinetic energy acceleration. As long as the gears rotate, fluid is mechanically trapped and moved from inlet to discharge. Whether the fluid is 10-cP water or 500-cP oil, the pumping mechanism functions identically. Flow output (GPM) remains nearly constant across the full viscosity range.
A NAPCO gear pump rated at 100 GPM with 10-cP water delivers 98-100 GPM with 500-cP oil at the same RPM. Viscosity has minimal impact on flow output. Pressure capability is likewise unaffected—the pump can sustain 150 PSI discharge pressure equally well with thin or thick fluid.
Shear-Sensitive Fluids: Another Advantage for Gear Pumps
Some industrial fluids—emulsions, polymers, high-viscosity adhesives—are shear-sensitive. Excessive mechanical shearing (fast velocity changes, turbulent flow) degrades the fluid chemistry, breaks apart emulsion structures, or causes polymer chain degradation. For these sensitive fluids, low-shear pumping is essential.
Centrifugal pump impellers create high-velocity, turbulent flow with significant shear rates. Rotating blades at high speed generate shear forces that break apart sensitive fluid structures. Gear pumps, by contrast, produce laminar (non-turbulent) flow at modest velocities. Fluid flows smoothly between the gears and pump casing without the turbulent mixing and shear that damage sensitive formulations.
For emulsion adhesives, latex emulsions, or any application where fluid chemistry is sensitive to mechanical stress, gear pumps are superior to centrifugal.
Real-World Case Study: The Centrifugal Pump Failure
A packaging manufacturer selected a 500-GPM centrifugal pump for a heat-seal adhesive application. The pump was rated for water service, and the engineer reasoned that "adhesive is just thicker water." The pump was installed, motor started, and it quickly became clear something was wrong: flow output was less than 100 GPM, far below the required 500 GPM. The discharge pressure was 20 PSI instead of the expected 100 PSI.
The engineering team attempted quick fixes: increasing motor speed (wasted energy, excessive vibration), reducing discharge pipe diameter (worsened pressure drop), and eventually adding a secondary transfer pump. None of these addressed the root problem: centrifugal pump operation is fundamentally incompatible with high-viscosity adhesive.
The solution: replacement with a NAPCO PA300S gear pump, which delivered the required 150 GPM of adhesive at stable 80 PSI discharge pressure, with energy consumption actually lower than the struggling centrifugal. The adhesive quality improved because shear was minimized. System downtime for the retrofit was one shift.

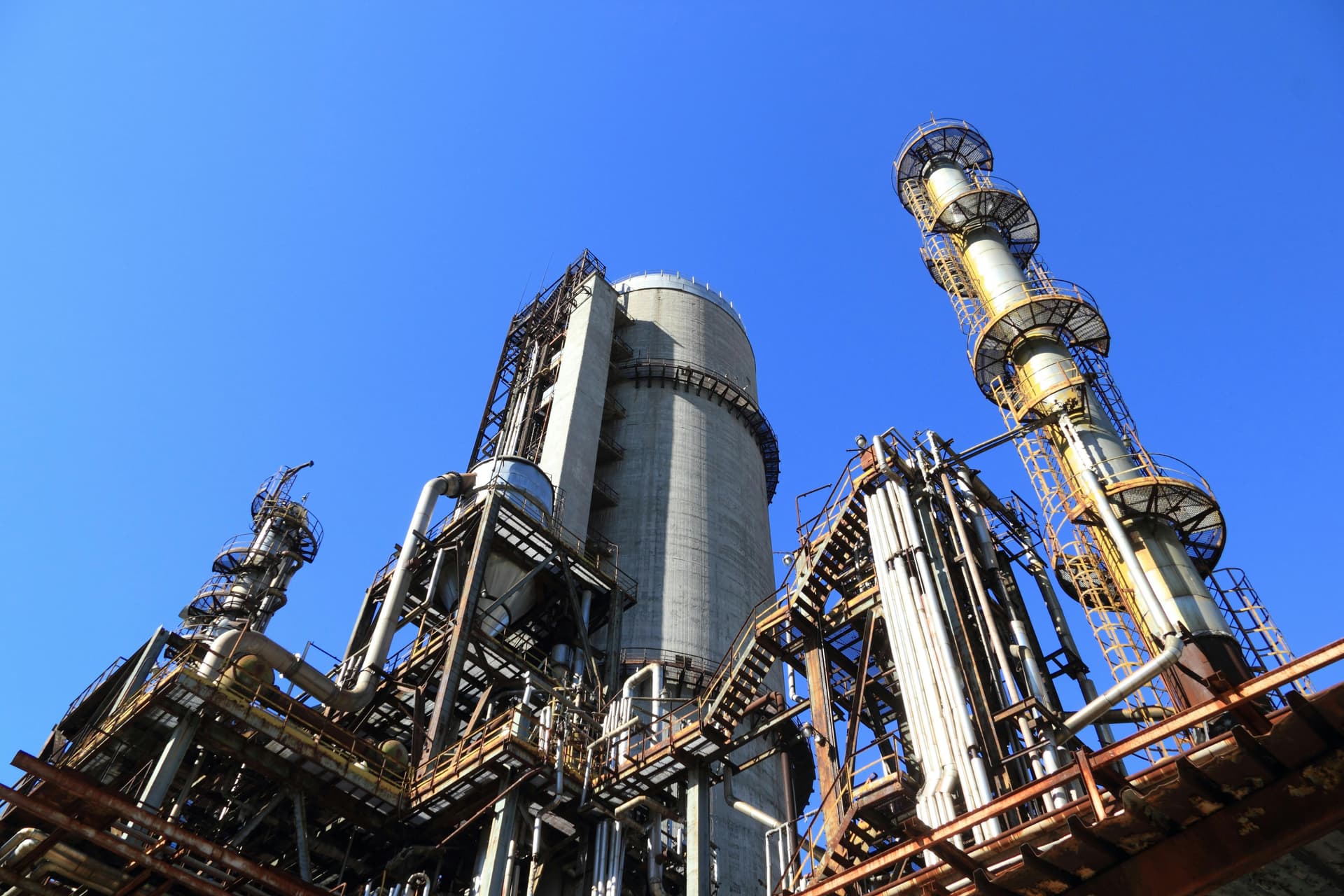

Modern manufacturing depends on reliable pump technology for consistent production
Cost Considerations: Initial vs. Lifecycle Expenses
Centrifugal pumps have a lower initial purchase price (typically 40-60% less than comparable gear pumps). For suitable applications (low-viscosity, low-pressure), this cost advantage is significant. However, total cost of ownership must account for lifecycle factors.
When Gear Pump Total Cost is Lower
- Energy cost: A mis-selected centrifugal struggling with viscous fluid consumes 2-3x more electricity than a gear pump handling the same fluid efficiently. Over a year of 24/7 operation, electricity cost can exceed pump purchase price.
- Downtime and repair: Centrifugal pump failure requires factory rebuild (4-8 weeks) or replacement. Gear pump failure can be addressed with on-site rebuild using NAPCO repair kits (3-4 hours downtime). For 24/7 production facilities, this difference is worth substantial money.
- Multiple pump retrofits: If a centrifugal pump fails in service and must be replaced with a gear pump, the facility absorbs both the failed centrifugal cost and the new gear pump cost. Selecting the correct gear pump initially avoids this double cost.
- Metering accuracy: Consistent gear pump flow enables precise adhesive blending ratios and reduces adhesive waste. Over months of production, material savings exceed the initial pump cost difference.
NAPCO Rotary Gear Pumps for Industrial Transfer Applications
NAPCO manufactures two primary rotary gear pump product lines serving a wide range of viscosity and pressure requirements:
PA300 Series — High-Volume Transfer
The PA300S and PA300C deliver 158 GPM at 280 RPM, ideal for bulk fluid transfer operations requiring high flow and moderate pressure. Stainless steel construction (S) or chemically-enhanced designs (C) are available for corrosive applications.
Recommended applications: Fuel transfer, bulk adhesive dispensing, large-scale chemical transfer, high-throughput industrial blending.
PA200 Series — Compact, High-Pressure Option
The PA200S and PA200C deliver 69 GPM at 190 RPM, suitable for smaller-scale operations or applications requiring higher discharge pressure with lower flow. Compact footprint makes them ideal for equipment-mounted applications.
Recommended applications: Precision adhesive metering, laboratory-scale transfer, high-pressure dispensing systems, equipment-mounted transfer pumps.
