Positive Displacement Rotary Gear Pump

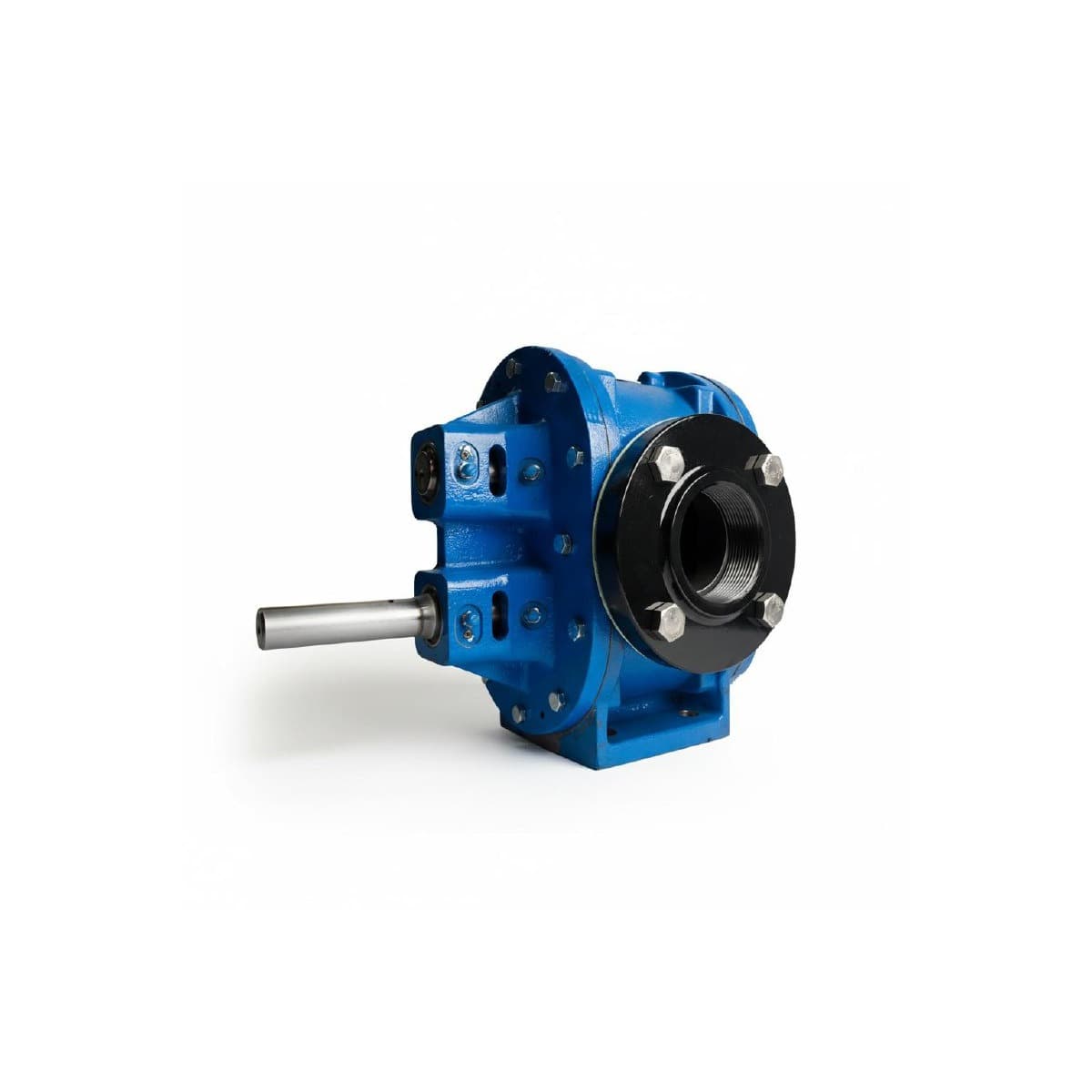

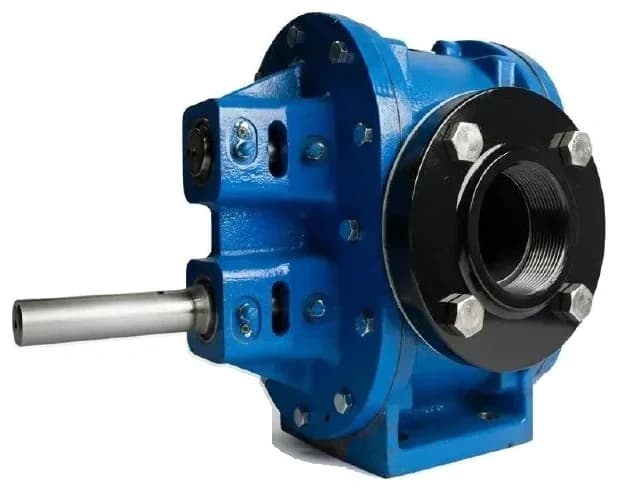

PA300C 3″ Ductile Iron Rotary Gear Pump
PDF · 1.4 MB
Overview
The PA300C is a 3″ port positive displacement rotary gear pump with a ductile iron housing and nitrile gears. It moves petroleum products, adhesives, coatings and industrial fluids at up to 158 GPM and 100 PSI, and is fully rebuildable in the field with standard hand tools.
Ductile iron is the economical choice wherever the fluid is not corrosive. For emulsion, chemical or food-grade duty, see the stainless PA300S — or the full stainless vs. ductile iron comparison. For background on the pumping principle, see what a rotary gear pump is.
Performance — Water @ 280 RPM
SG 1.0 · AmbientHigher-viscosity fluids may require lower RPM. Flow bars are scaled to the 158 GPM maximum. View full engineering data →
Configuration
PA300C
3″ Ductile Iron Rotary Gear Pump
Materials of Construction
Connections, Weights & Shipping
Nitrile gears are standard; Viton® gears available for aggressive chemical service. Full dimensional detail is called out on the drawings below.
Seal & Gasket Part Numbers

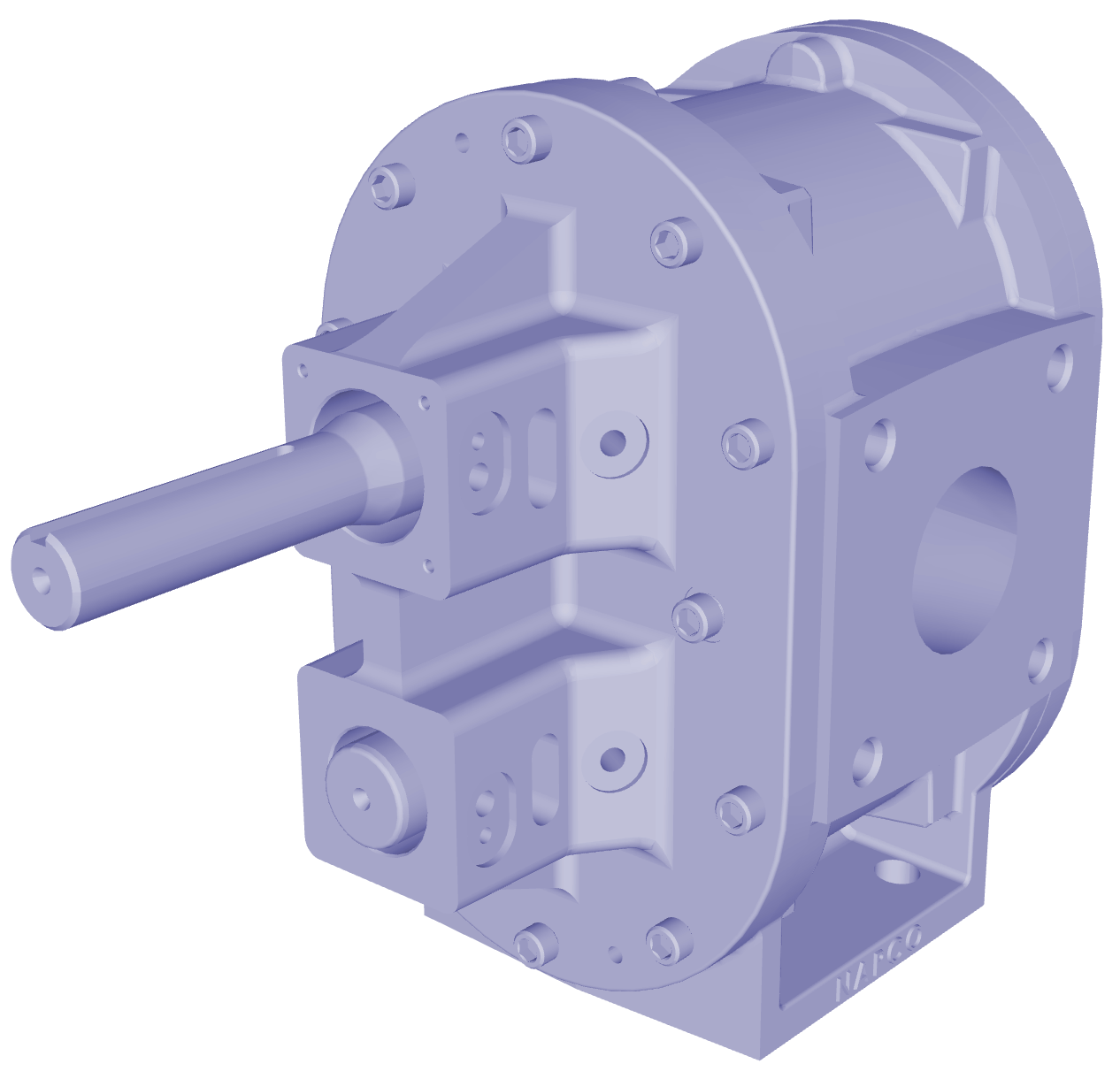

Reference Drawings
Inches · Not for fabricationDrive shaft may be fitted in either position.
Traced from NAPCO factory drawing · Rev. 07/2026
Rebuild, Don’t Replace

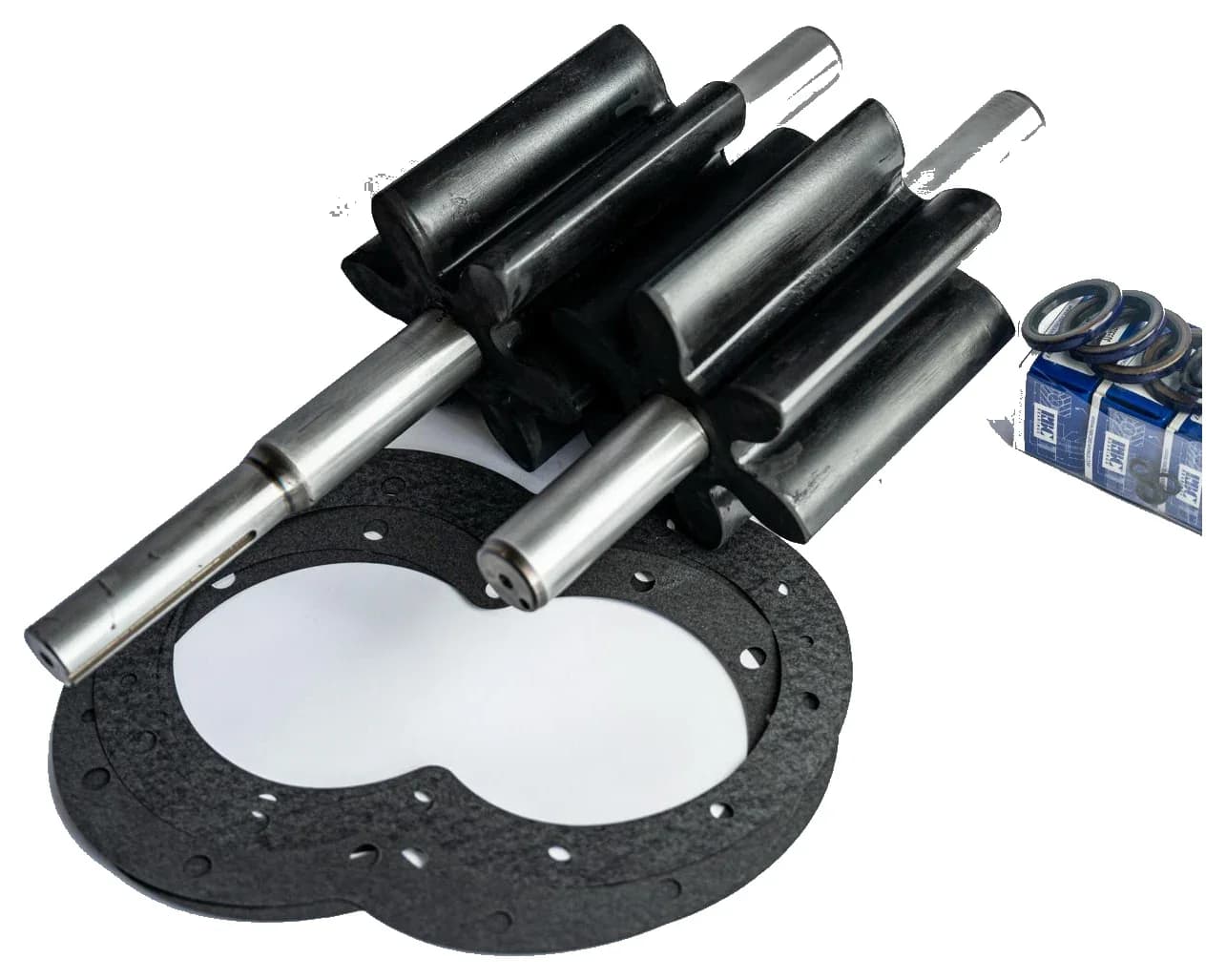

PK300C — 3″ Ductile Iron Repair Kit
Drive and idler gear assemblies, all high- and low-pressure seals, all bearings, and a full gasket set — everything needed to restore the pump to original factory specification.
