Positive Displacement Rotary Gear Pump

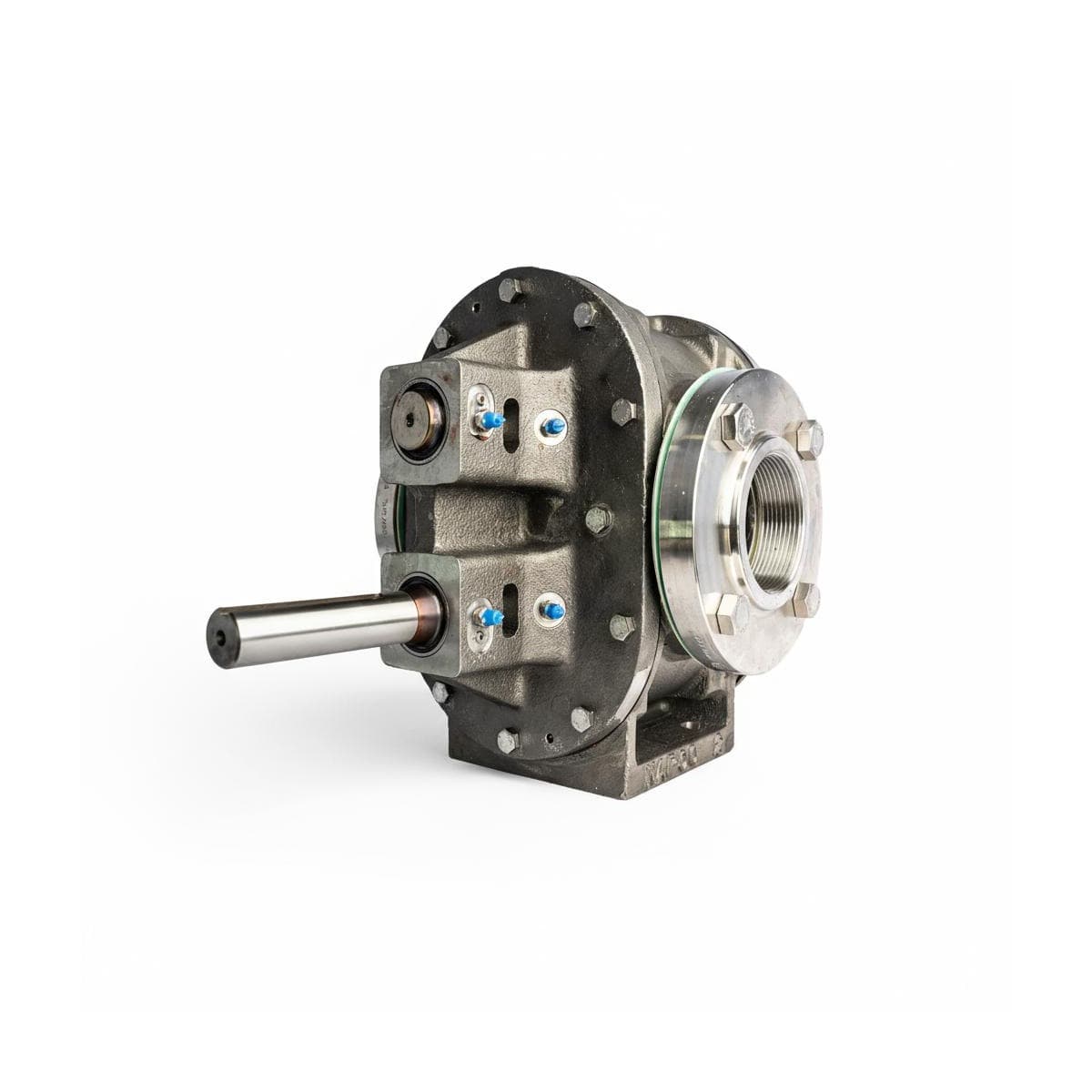

PA200S 2″ Stainless Steel Rotary Gear Pump
PDF · 1.7 MB
Overview
The PA200S is a 2″ port positive displacement rotary gear pump with a stainless steel housing and nitrile gears. It handles chemical transfer, corrosive fluids and food-grade duty at up to 69 GPM and 100 PSI, and is fully rebuildable in the field with standard hand tools.
The 2″ platform suits lower-volume metering and transfer where the 3″ PA300S would be oversized. For background on the pumping principle, see what a rotary gear pump is.
Performance — Water @ 190 RPM
SG 1.0 · AmbientHigher-viscosity fluids may require lower RPM. Flow bars are scaled to the 69 GPM maximum. View full engineering data →
Configuration
PA200S
2″ Stainless Steel Rotary Gear Pump
Materials of Construction
Connections, Weights & Shipping
Nitrile gears are standard; Viton® gears available for aggressive chemical service. Full dimensional detail is called out on the drawings below.
Seal & Gasket Part Numbers
Reference Drawings
Inches · Not for fabricationDrive shaft may be fitted in either position.
Traced from NAPCO factory drawing · Rev. 07/2026
Rebuild, Don’t Replace

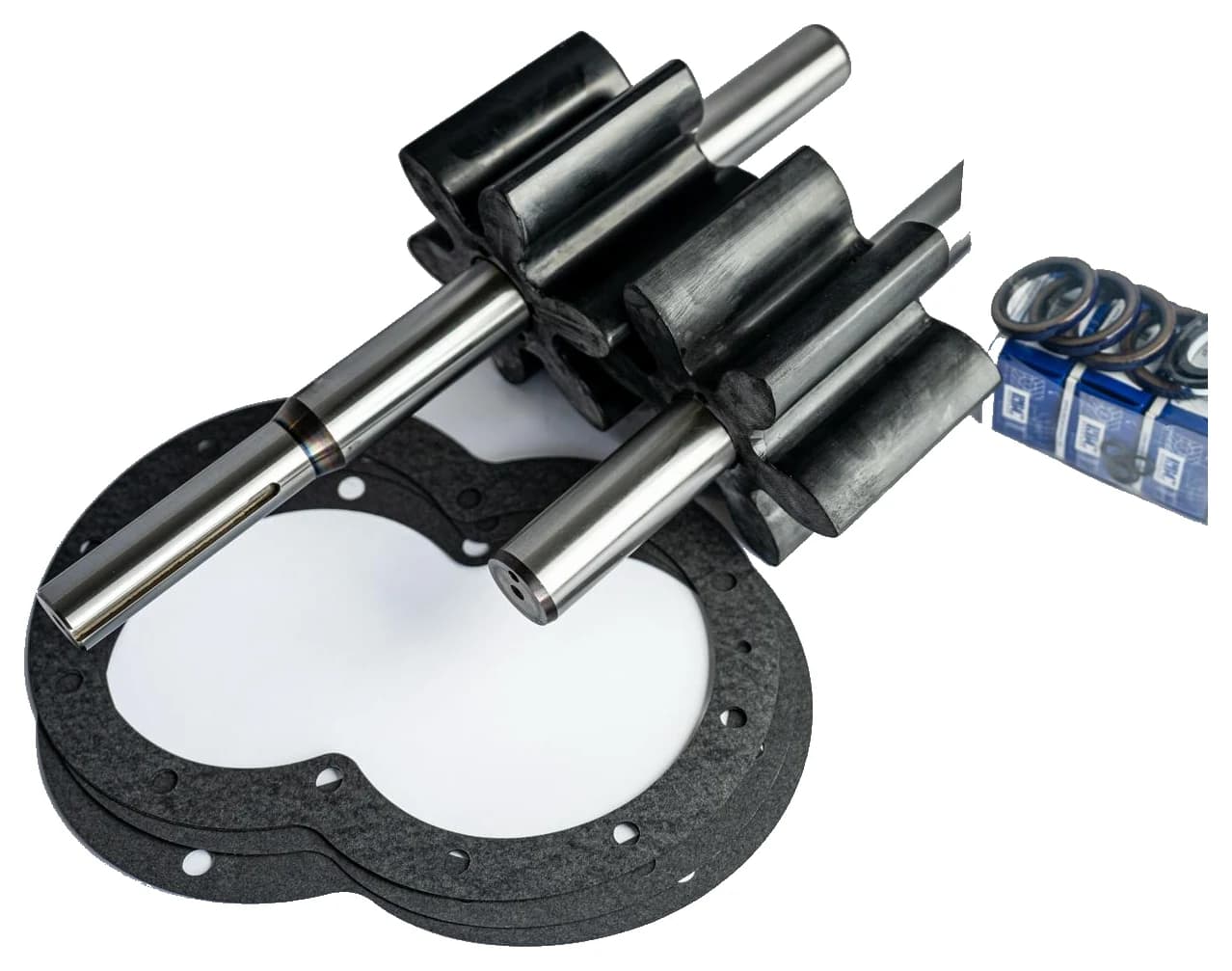

PK200S — 2″ Stainless Steel Repair Kit
Drive and idler gear assemblies, all high- and low-pressure seals, all bearings, and a full gasket set — everything needed to restore the pump to original factory specification.
