Why Stainless Steel is Essential for Food Processing Pumps
Food processing operates in a unique environment where product safety, sanitation, and regulatory compliance are non-negotiable. Pumps used to transfer food ingredients—syrups, oils, chocolate, flavorings, and dairy products—must resist corrosion from both the food product itself and the alkaline cleaning agents used to sterilize equipment between production runs.
Stainless steel construction is the industry standard for food processing equipment because it provides three critical advantages:
- Corrosion Resistance: Stainless steel resists attack from acidic food products (citrus juice, vinegar, wine), alkaline cleaning solutions (caustic soda, chlorine-based sanitizers), and salt-based preservation agents.
- No Metal Contamination: Unlike ductile iron, stainless steel will not corrode or shed metal particles into food products, eliminating a contamination pathway and potential health hazard.
- Cleanability: Smooth stainless steel surfaces are easier to clean and sterilize in place (CIP systems), reducing biofilm formation and supporting food safety protocols.
- Regulatory Alignment: FDA guidance documents recognize stainless steel as the preferred material for direct-food-contact equipment and sanitary processing systems.
- Long Service Life: Stainless steel pumps last 10-15 years in food service, compared to 5-7 years for ductile iron, reducing replacement costs and production interruptions.
Stainless Steel Material Compatibility for Food Products
Different food products present different corrosion challenges. Understanding which stainless steel grade suits your specific food application ensures long pump life and product safety.
Acidic Food Products
Citrus juices, vinegars, wine, and fermented products are acidic (pH 2–4) and can corrode carbon steel and ductile iron rapidly. Stainless steel (typically 304 or 316 grade) resists organic acid attack and maintains structural integrity. Type 316 stainless offers superior corrosion resistance in acidic environments and is preferred for long-term juice and wine processing applications.
Oils and Fats
Vegetable oils, olive oil, and animal fats are non-corrosive to stainless steel and generally compatible with all pump materials. However, rancid or oxidized oils can develop free fatty acids that attack ductile iron. Stainless steel construction eliminates this risk. For oils requiring heating above 120°F, Viton seals (standard on NAPCO stainless pumps) provide superior high-temperature compatibility compared to nitrile.
Chocolate and Cocoa Products
Molten chocolate (110–140°F) is non-corrosive but requires careful pump selection for viscosity and temperature management. Stainless steel housings ensure no iron or copper contamination affects chocolate color or flavor. NAPCO stainless pumps with Viton seals are ideal for chocolate pipelining in confectionery operations.
Syrups and Sweeteners
High-viscosity syrups (glucose, corn syrup, honey) are non-corrosive but demand stainless steel construction for food safety and the ability to tolerate heating (syrups often warmed to reduce viscosity for pumping). Stainless prevents any metal leaching into product.
Dairy Products and Milk-Based Fluids
Milk, cream, and dairy-based sauces contain proteins and lactose that can deposit on pump surfaces. Stainless steel surfaces are easier to clean and less prone to biofilm formation than iron. Combined with regular CIP cleaning using alkaline cleaners, stainless pumps maintain sanitary conditions essential for dairy processing.

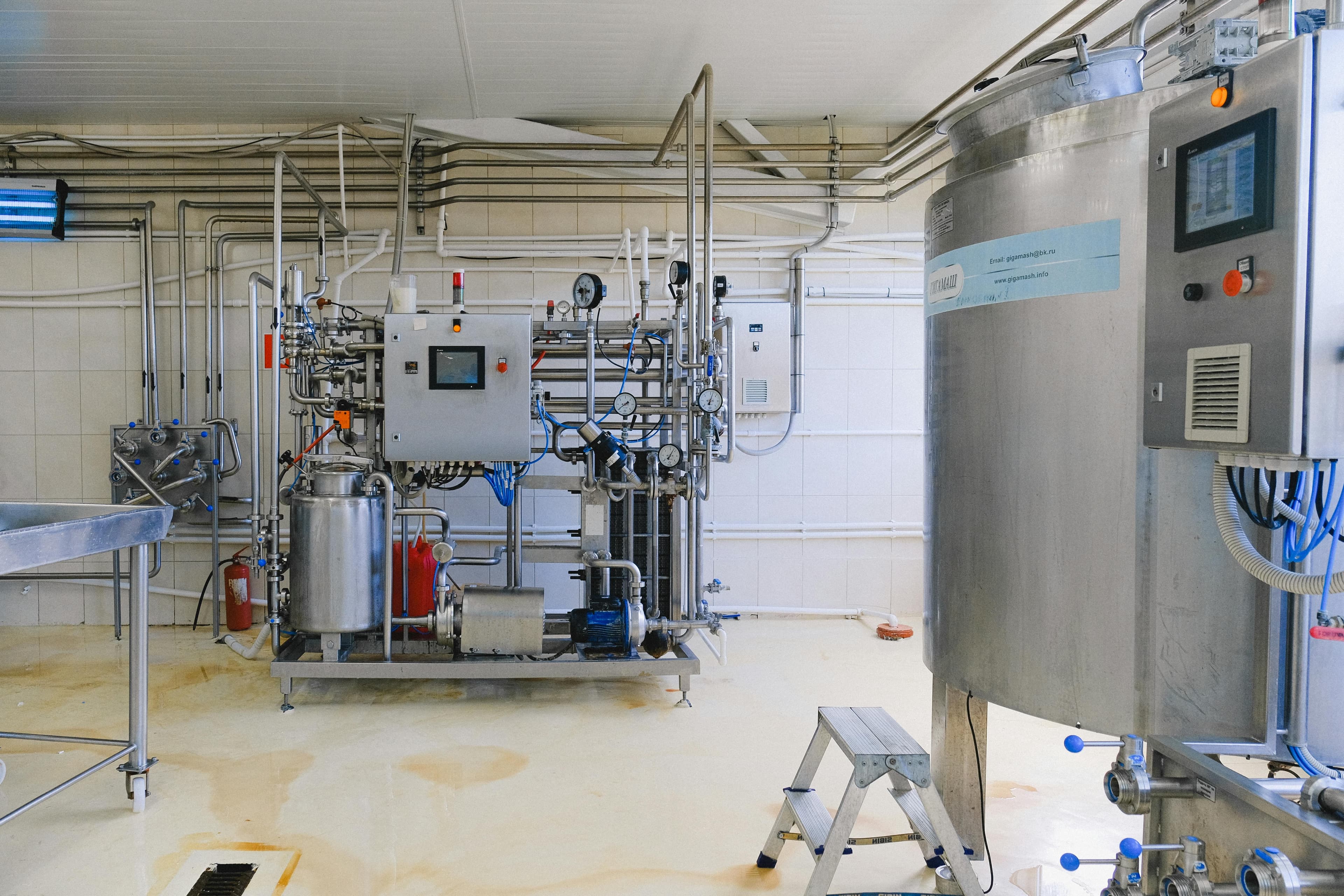

Sanitation Requirements and Cleanability
Food processing regulations (FSMA in the US, equivalent standards globally) mandate sanitary design of pumps and process equipment. The pump must support CIP (Clean-In-Place) and SIP (Sterilize-In-Place) protocols without harboring bacteria, yeast, or mold.
Smooth Internal Surfaces
NAPCO gear pumps feature polished internal cavities and wear surfaces that minimize surface irregularities where microorganisms could hide. Rough or pitted surfaces (common in cast iron) trap cleaning solution and harbor biofilm. Stainless steel's natural finish is inherently smoother and easier to sanitize.
Minimal Dead Legs and Fluid Pockets
Dead legs—areas where fluid stagnates and cannot be fully drained or cleaned—are a critical food safety concern. NAPCO pump design minimizes dead legs in valve cavities and discharge ports, supporting complete drainage and flushing during sanitation cycles.
CIP Compatibility
CIP systems use alkaline cleaners (pH 12–14), acidic sanitizers, and high-temperature hot water (160–180°F) to sterilize equipment automatically. NAPCO stainless pumps with Viton seals tolerate repeated CIP cycles. Viton elastomers resist alkaline cleaners and chlorine-based sanitizers up to their full temperature rating (400°F), eliminating seal replacement between production runs.
Viscosity Considerations for Common Food Fluids
Food products span a wide viscosity range, from thin (water-based) to extremely thick (syrups and chocolate). Rotary gear pumps excel in this diversity because flow rate depends only on displacement and RPM, independent of fluid viscosity.
Low-Viscosity Fluids (1–10 cSt)
Thin fluids like water, juice, and light oils operate easily in standard rotary gear pumps. At high RPM (280–300 RPM for a PA300 series pump), low-viscosity fluids deliver maximum flow rate with minimal pressure drop.
Examples: Water, apple juice, orange juice, lemonade, light oils, skimmed milk.
Pump Setting: Run at full design RPM (280 RPM for PA300S, 190 RPM for PA200S); downstream pressure controls flow via relief valve.
Medium-Viscosity Fluids (10–100 cSt)
Oils, peanut butter, sauces, and some syrups fall in this range. Medium-viscosity fluids pump efficiently without excessive pressure drop or power consumption. At standard operating RPM, a PA300 delivers full rated flow (158 GPM) with minimal slippage.
Examples: Vegetable oil, olive oil, peanut butter (thinned), tomato sauce, thin syrups.
Pump Setting: Run at standard RPM; verify system pressure remains below 100–150 PSI depending on motor power.
High-Viscosity Fluids (100–5000+ cSt)
Thick syrups, honey, chocolate, and viscous pastes require special handling. At high viscosity, internal slippage (leakage past gear teeth) increases, reducing pump efficiency. Most food applications heat high-viscosity fluids before pumping to reduce viscosity and improve flow.
Examples: Corn syrup, honey, molten chocolate (110–140°F), peanut butter, caramel, thick glazes.
Pump Setting: Heat fluid to 100–140°F to thin it, then reduce pump RPM to 50–60% of design speed (e.g., 140 RPM for a PA300 normally run at 280 RPM). This reduces power consumption and extends seal life in high-viscosity service.
Viscosity and Temperature Relationship
All food fluids become thinner as temperature rises. A syrup at 60°F might be 2000 cSt, but at 120°F it drops to 500 cSt. This is why many food operations heat viscous products before pumping—heating reduces power demand and improves system efficiency. Verify operating temperature limits with your product supplier, especially for temperature-sensitive ingredients like chocolate or sensitive flavorings that degrade above 140°F.
Temperature Management in Food Applications
Cold Food Applications
Chilled products (juices, milk, yogurt) typically operate at 35–45°F. At these low temperatures, fluid viscosity increases, requiring careful RPM selection to avoid excessive pressure and motor overload. NAPCO pumps with standard electric motors operate efficiently in cold storage environments; no special heating or cooling is required.
Hot Food Applications
Hot processing (chocolate pipelining at 110–130°F, pasteurization systems, hot syrup transfer) requires careful seal selection. NAPCO standard specification uses Viton elastomers, rated to 400°F continuous operation, providing exceptional margin above typical food processing temperatures. Even aggressive hot-filling operations (up to 180°F) remain well within Viton capability.
Thermal Cycling Stress
Facilities that transition between cold and hot operations (e.g., chilled juice filling followed by hot syrup transfer) experience thermal stress. Stainless steel provides superior dimensional stability across temperature extremes compared to ductile iron. The lower thermal expansion coefficient of stainless steel minimizes seal compression changes during warm-up and cool-down cycles, extending seal life.
Selecting Between PA300S and PA200S for Food Applications
NAPCO offers two stainless steel models for food processing, differing in displacement and flow rate. Selection depends on required flow volume, system pressure, and available motor power.
PA300S — High-Volume Food Processing
The PA300S delivers 158 GPM at 280 RPM and is ideal for large-scale food production where high flow is required.
Specifications: 158 GPM @ 10 PSI, 26.5 cc/rev displacement, 150 PSI rated maximum, stainless steel housing and shaft, Viton seals standard, nitrile or Viton gear options.
Food Applications: Syrup and chocolate transfer in confectionery, bulk oil distribution to filling lines, large-scale juice or beverage processing, cream and sauce production, peanut butter and nut paste operations.
Typical Setup: 20–30 HP electric motor at 1800 RPM geared down to 280 RPM pump speed; delivers 140–158 GPM at system pressures up to 100 PSI depending on viscosity.
PA200S — Moderate to High-Precision Food Operations
The PA200S delivers 69 GPM at 190 RPM and suits smaller-scale operations, high-precision metering, or situations where system pressure must be maintained above 100 PSI.
Specifications: 69 GPM @ 10 PSI, 11.5 cc/rev displacement, 150 PSI rated maximum, stainless steel housing and shaft, Viton seals standard, nitrile or Viton gear options.
Food Applications: Precision metering of flavorings and additives, small-batch chocolate operations, laboratory-scale processing, high-pressure flavor injection systems, artisanal food production, niche market products requiring controlled flow.
Typical Setup: 10–15 HP electric motor at 1800 RPM geared to 190 RPM pump speed; delivers 60–69 GPM at system pressures up to 150 PSI.
Comparing Performance and Sizing
To select the right model, calculate required flow rate in GPM based on your production target. If a filling line requires 100 GPM to fill 500 containers per hour, the PA300S is the clear choice. If precision metering requires only 30 GPM with pressure control, the PA200S provides greater pressure capability and efficiency at lower flow.
FDA Compliance and Sanitary Design Standards
NAPCO does not claim FDA certification for individual pump components. However, NAPCO stainless steel gear pumps are designed in accordance with FDA guidance on equipment for food contact (21 CFR Part 110) and comply with sanitary design principles outlined in FDA Process Preventive Controls for Human Food.
Key Compliance Features
- Full stainless steel (304 or 316) construction of all wetted surfaces
- Smooth, polished internal surfaces resistant to biofilm formation
- Minimal crevices and dead legs in design
- Viton seals compatible with alkaline and acidic cleaners
- Rated for CIP and SIP processing temperatures
- Field-serviceable design with food-grade repair kits available
Installation and Validation
While NAPCO pumps meet sanitary design standards, individual food processing facilities are responsible for validation of their complete system. This includes installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) testing of the entire fluid path from raw material through filling or packaging. NAPCO engineering is available to support your facility's validation protocol.
